FlexLang - The Language of Software Interfaces

The Language of Software Interfaces

Flex is an open, non-proprietary domain-specific modeling language for precise software interface specification.

Flex gives you a verifiable, rigorously-defined standard for data structures, interoperability, and behaviors so that you can move with speed and confidence.

Get Started »

// A position using imperial units
message struct PositionUS {
    latitudeDegrees: float64;
    longitudeDegrees: float64;
    altitudeFeet: float32;
}

// A position using metric units
message struct PositionMetric {
    latitudeRadians: float64;
    longitudeRadians: float64;
    altitudeMeters: float32;
}

/* Convert a position from imperial to metric units. */
transform US_to_Metric(i : PositionUS) -> PositionMetric {
    let deg2rad = 3.14159 / 180.0;
    PositionMetric {
        latitudeRadians = i.latitudeDegrees * deg2rad;
        longitudeRadians = i.longitudeDegrees * deg2rad;
        altitudeMeters = i.altitudeFeet * 0.3048;
    };
}

Built for Rapid Integration

Speed matters. Today's complex systems demand rigorous specification of interfaces, which enables a Modular Open Systems Approach (MOSA), machine-readable interfaces, and rapid integration across vendors.

Flex makes that practical.

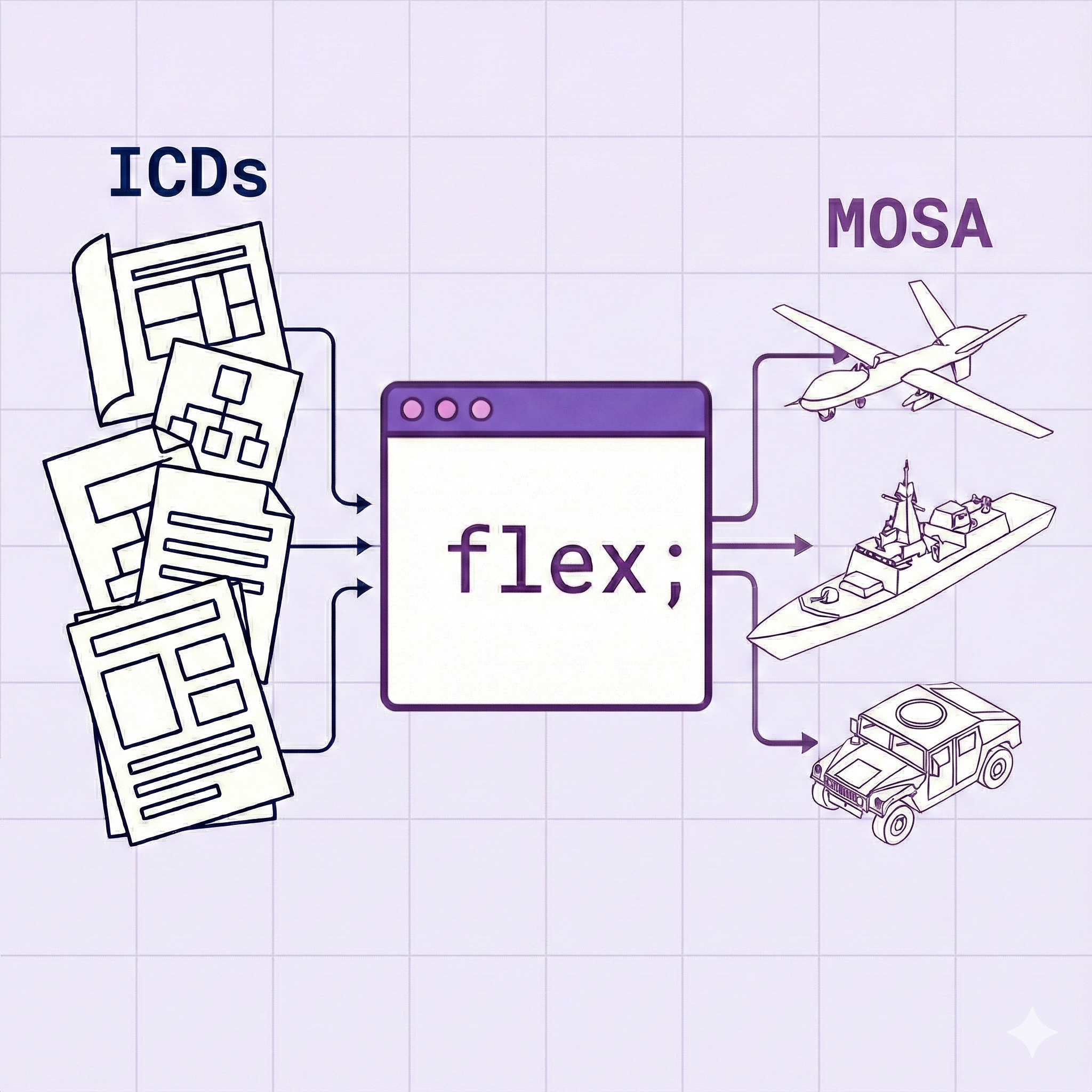

Flex turns digital ICDs into executable interface definitions:

Machine-readable ICDs
Faster integration
Modular competition
Continuous delivery
Non-proprietary interface documentation

Flex empowers teams to design and build quickly with confidence that systems will work.

Enabling MOSA Today

Flex powers mission-critical systems that require MOSA-aligned interoperability.

Used across defense and autonomy programs, Flex helps teams define machine-readable interfaces that enable modular integration, safe evolution, and faster delivery – so they can focus on capability, not compatibility.

Micro Air Vehicle Link

A protocol for communicating with small unmanned vehicles, widely used in drone and UAV systems.

Flex Benefit: Flex simplifies the implementation of MAVLink protocols while adding strong typing and validation for more reliable drone communication systems.

Visit MAVLink Docs

Robot Operating System

A flexible framework for writing robot software, providing tools and libraries for building robotic applications.

Flex Benefit: Flex provides type-safe message definitions for ROS, ensuring reliable communication between robotic components while maintaining compatibility with existing ROS ecosystems.

Visit ROS Website

STANAG-4586

A NATO standard for the interoperability of UAV control systems, ensuring different UAV systems can work together.

Flex Benefit: Flex ensures strict compliance with STANAG-4586 message formats while providing tools for easy integration with other defense communication standards.

View NATO Standards

Why Choose Flex?

A modern approach to system interoperability and data modeling

What is Flex?

Flex is a domain-specific modeling language designed for modern software systems and their interactions. It combines the power of type safety with the flexibility needed for complex system integration.

Non-proprietary, open-source modeling language
Define data structures, transformations, and interfaces
Human and machine readable format
Proven on government and industry standards

Key Benefits

Flex provides powerful capabilities that make it the ideal choice for system integration and data modeling:

Easily leverage formal methods for your software design
Ensure system robustness and maintainability
Seamlessly convert between formats (Protobuf, XSD, IDL, etc.)
Generate consistent interface libraries in multiple languages

Core Features

Rich Primitive Types

Flex supports a wide range of primitive types including signed and unsigned integers of various bit widths (e.g., int8, uint64), float32, float64, string, and bit. It also includes special types like arrays (T[]) and optionals (Optional<T>).

Type Safety

With features like newtype, you can create distinct types from underlying primitives to enforce compile-time guarantees about data that would normally be non-distinct. This helps prevent common errors and improves the robustness of your system.

Built-in Functions

The standard library is packed with built-in functions for common operations like length, range, zip, enumerate, and a comprehensive set of math functions (sin, cos, sqrt, etc.), all designed to make your specifications concise and powerful.

Powerful Transforms

Define canonical translations between message types with transform functions. Transforms are the glue that enables components to communicate even if they use different message standards, ensuring information is preserved and unambiguous.

Contextual Parameters

When a transform needs additional information, like a timestamp or a UUID, it can specify contextual parameters. This ensures that all necessary data is available for the translation without cluttering the primary message definition.

Pattern Matching

Flex includes powerful `match` expressions for control flow, allowing you to elegantly handle different variants of a data type or deconstruct optional values, leading to cleaner and more readable code.

Flex by Example

Flex's syntax is designed to be intuitive and expressive.

Structs and Messages

// A position using imperial units
message struct PositionUS {
    latitudeDegrees: float64;
    longitudeDegrees: float64;
    altitudeFeet: float32;
}

// A position using metric units
message struct PositionMetric {
    latitudeRadians: float64;
    longitudeRadians: float64;
    altitudeMeters: float32;
}

Transforms

/* Convert a position from imperial to metric units. */
transform US_to_Metric(i : PositionUS) -> PositionMetric {
    let deg2rad = 3.14159 / 180.0;
    PositionMetric {
        latitudeRadians = i.latitudeDegrees * deg2rad;
        longitudeRadians = i.longitudeDegrees * deg2rad;
        altitudeMeters = i.altitudeFeet * 0.3048;
    };
}

Protocols and Behaviors

// declare order process for online purchases
global protocol OnlinePurchaseProtocol {
  exch any Order from Customer to Store;
  exch any InStockRequest from Store to Warehouse;
  exch any InStockResponse into let r: InStockResponse from Warehouse to Store;
  choice in Store
  | r.isInStock =>
      exch any Confirmation from Store to Customer;
  | !r.isInStock =>
      exch any Denial from Store to Customer;
  end
}

Explore Real-World Examples ›

Get Started

Interested in trying Flex?

Download our tools to start working with Flex in your development environment.

Check out the language documentation to learn more about Flex syntax and features.

VS Code Plugin

Syntax highlighting, IntelliSense, & parsing for Flex files directly in Visual Studio Code.

Download Flex Extension v1.7.0
